What Do You Know About Automotive Engine Oil Pumps?

Oil pumps play a crucial role in automobile engines. Thanks to this component, engine oil can be transported stably and continuously to all vehicle components. So, what do you know about your car's oil pump system? How many types of oil pumps exist, and how can you ensure effective oil pumping? All answers will be provided in the following article by Huynh Chau!

See more:

• Why does your car leak oil?
• Should you use multiple types of oil for your automobile engine?
• 4 types of engine oil that every car owner needs to know

The automotive oil pump is an important component that affects engine performance

1. What is a lubrication oil pump?

An oil pump is a critical component of the lubrication system. This part creates pressure to deliver engine oil to engine components completely and stably. The oil pump is typically located under the crankcase, near the oil reservoir area.

2. Types of lubrication oil pumps

Currently, there are 3 common types of lubrication oil pumps. Each type has different characteristics and structures. Below, Huynh Chau automotive oil distributor will provide you with comprehensive information on each type:

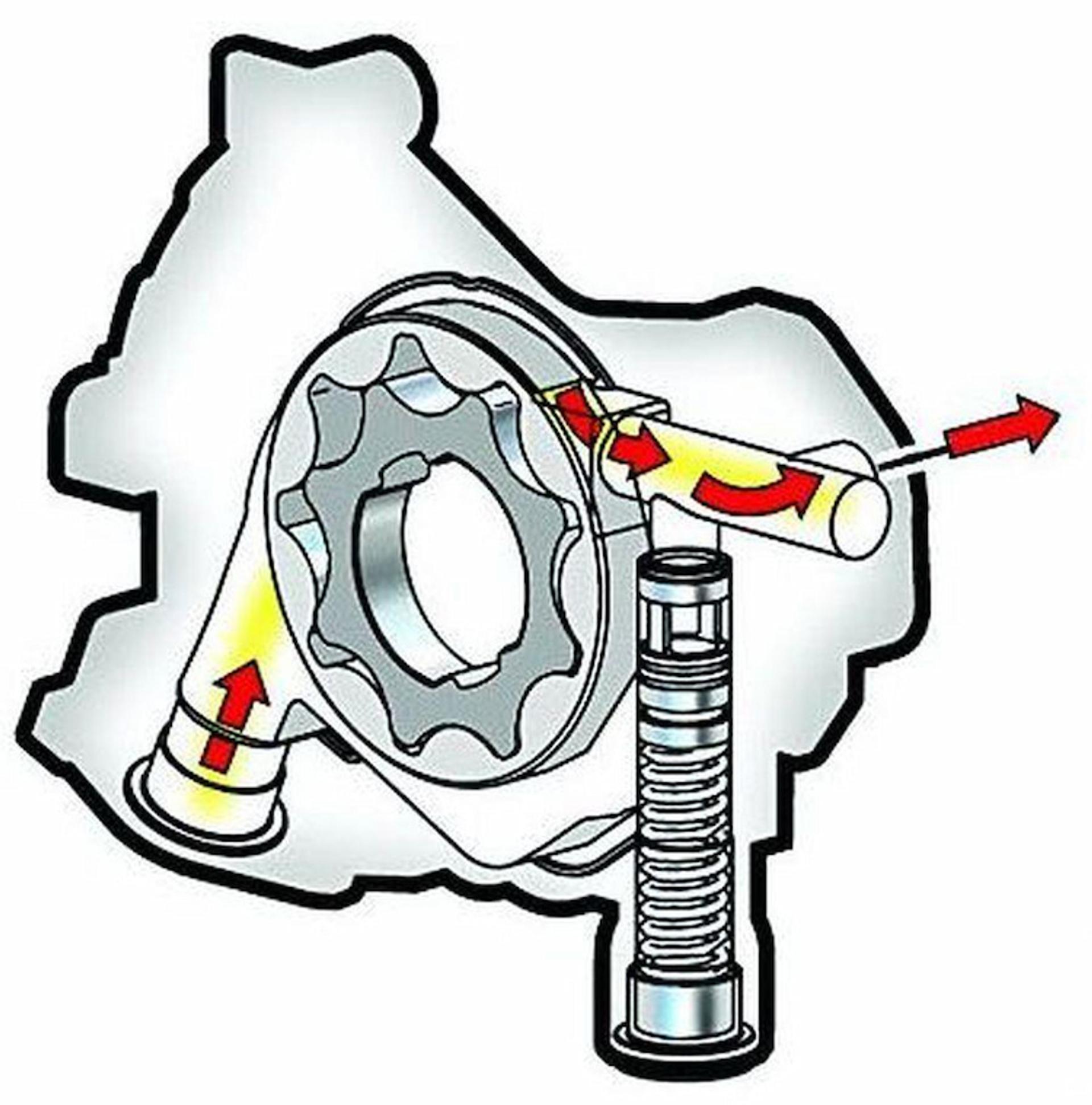

2.1. Rotor pump

This pump type consists of a housing containing 2 nested rotors. The outer rotor has a star shape with rounded peaks and is drilled with holes inside. The inner rotor has a cross shape and can rotate. These two rotors are designed with eccentric positioning. When the inner rotor rotates, it causes the outer rotor to move accordingly, creating gaps to hold and pump oil.

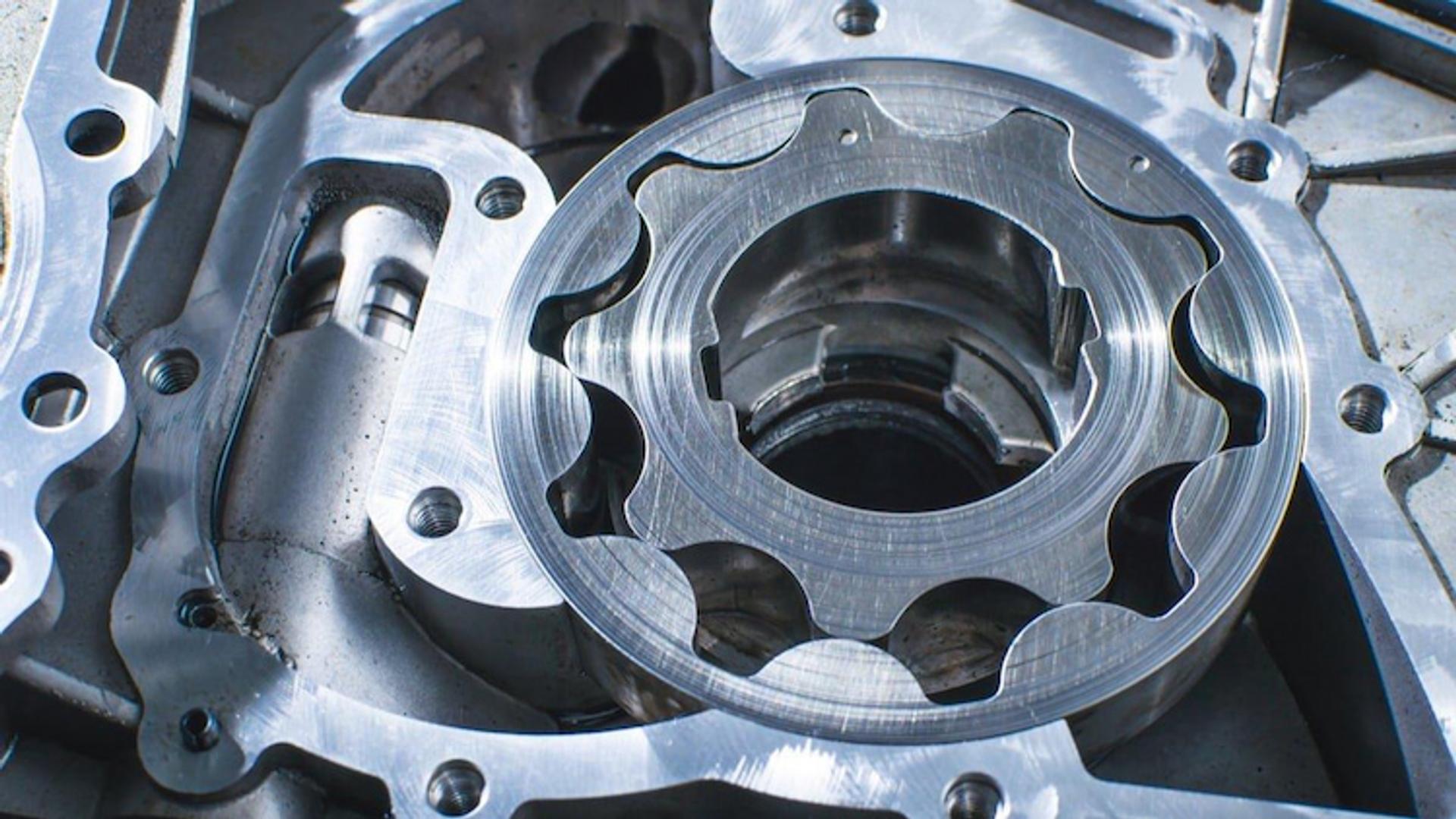

The rotor pump is constructed with 2 nested rotors

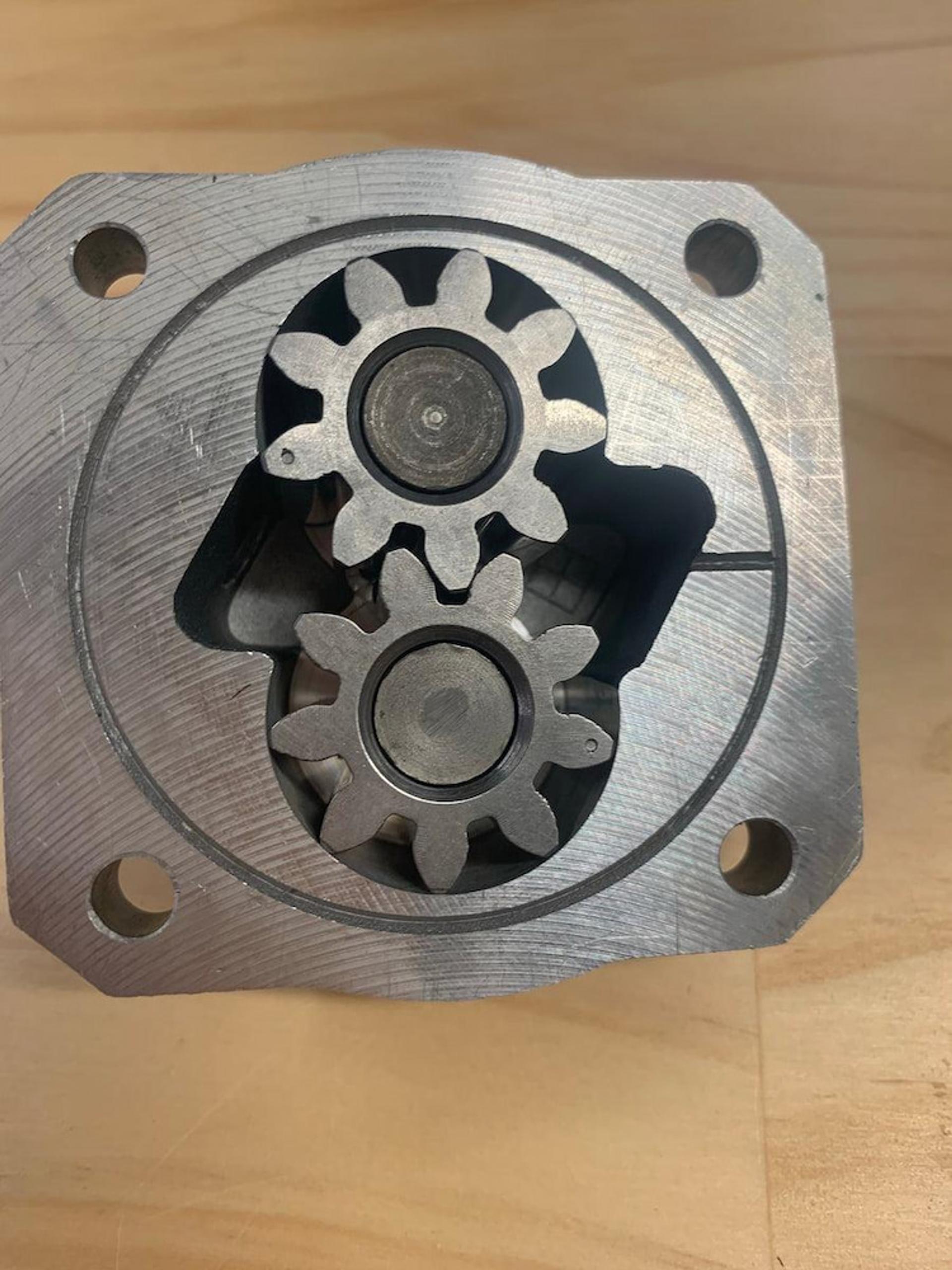

2.2. Gear pump

This pump type consists of 2 gears (a drive gear and a driven gear) designed to mesh together, creating two separate oil chambers. When the gears rotate, engine oil is pushed from the "inlet oil chamber," flows to the "outlet oil chamber," and then reaches the engine components.

Two gears are installed to mesh together, forming 2 separate oil chambers

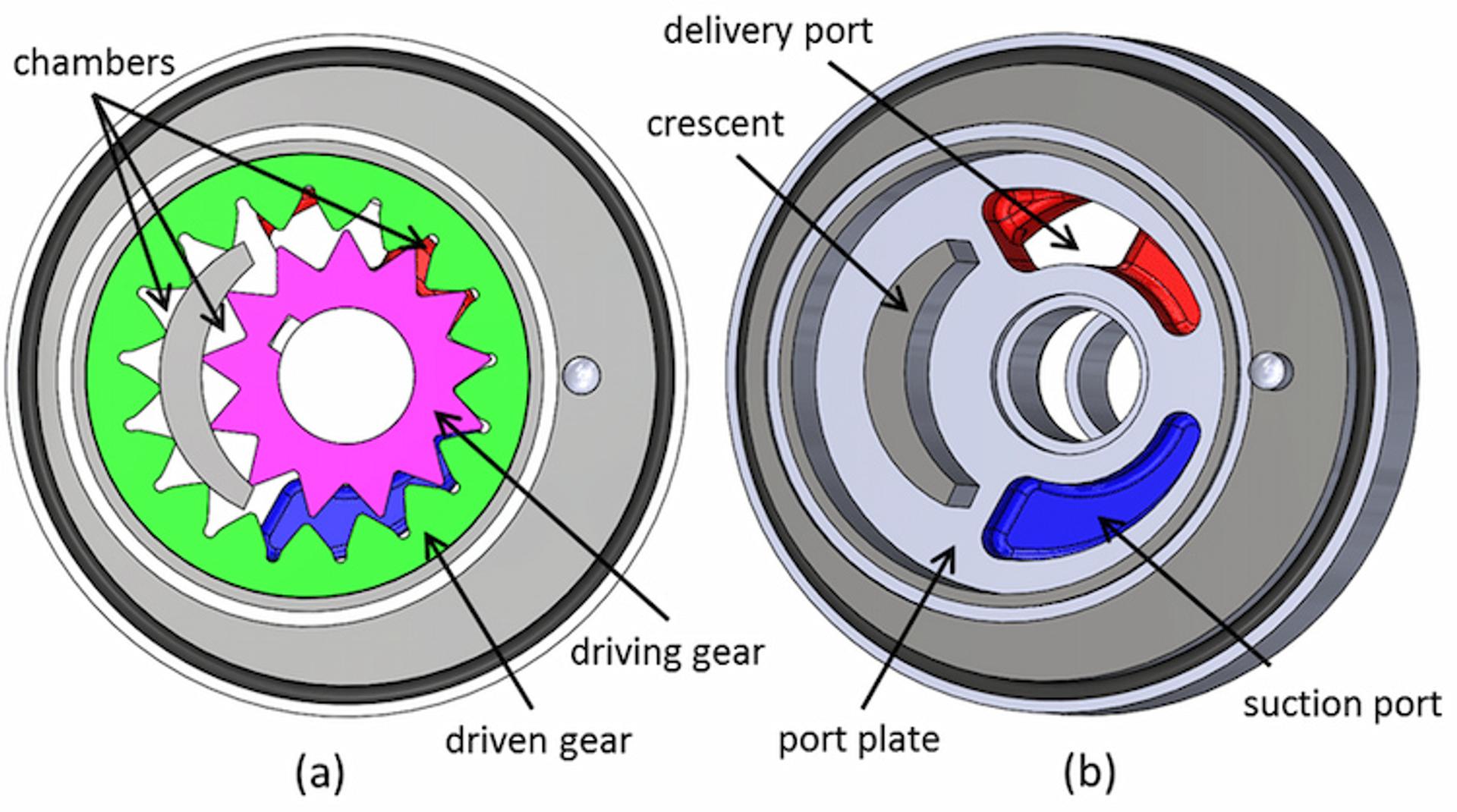

2.3. Crescent pump

A crescent pump consists of a system of two inner and outer gears meshing together. The outer gear has more teeth than the inner gear. When the inner gear rotates, the outer gear rotates accordingly and creates pressure to force and push oil into the
